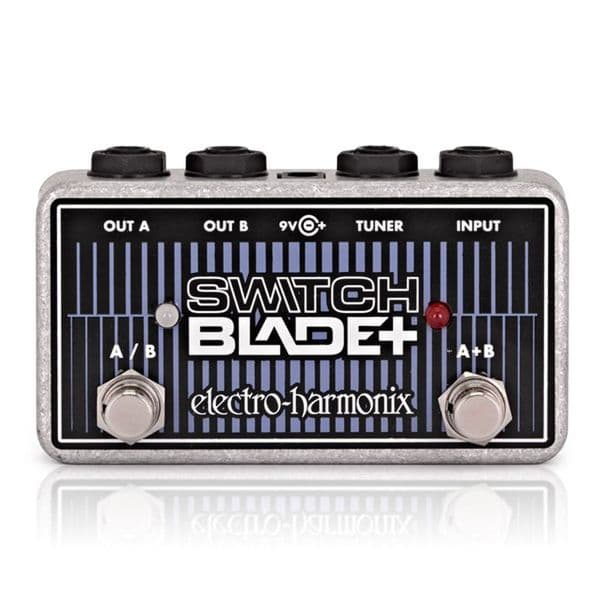

Route your signal to either output A or B, or send it to both at once. Connect a tuner or effects pedal to its dedicated Tuner output. With a fully passive audio path and active LED indication, the EHX Switchblade+ is your utilitarian sidekick.

• Route your signal to output A or output B or both simultaneously
• Easily switch between different pedal boards
• The tuner jack is hardwired to the input jack and provides a direct output for a tuner or other effects regardless of the state of the unit
• The audio path is completely passive

Circuit: Analog
Audio :Mono
Power Supply: Optional 9V battery or 9.6VDC-200mA power adapter not included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 16mA
Year Released: 2011
